SMALL SCREENS (under 15l/s)



Our self-cleaning stainless steel screens are optimised for low flow rates. Water-driven cleaning ensures they stay durable and blockage-free for years.

FEATURES

  • Designed for New Zealand and Australian conditions

  • Baffle ensures even water flow

  • No electrolysis: durable stainless steel and plastic construction

  • Strong, lightweight stainless steel design

  • Easy to service

  • Eco-friendly, meeting Environmental Council standards

DESCRIPTION

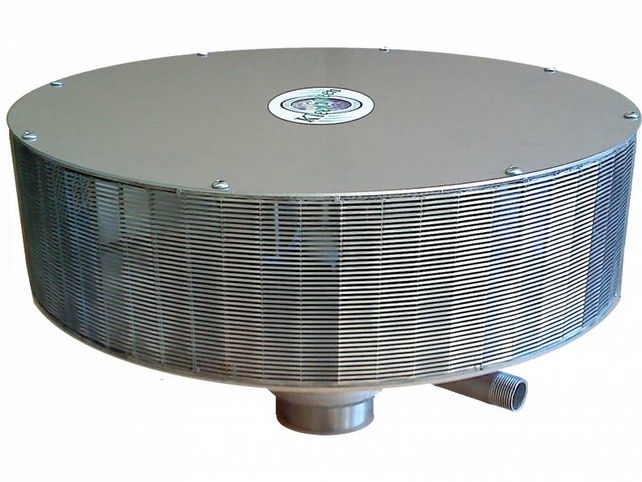

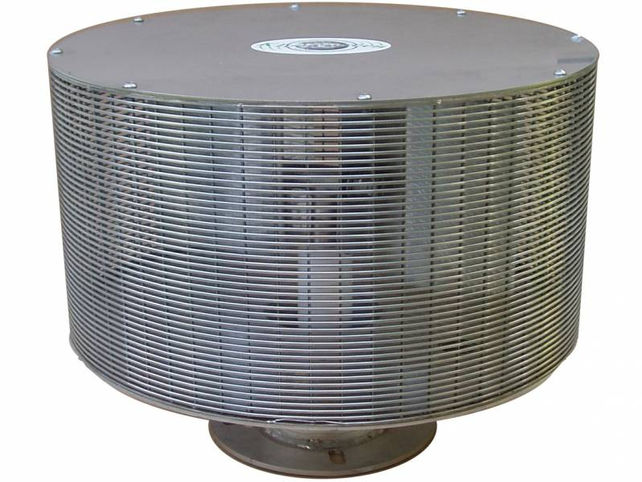

The KleenScreen Revolver features a unique backwashing system with all moving parts inside a stationary screen. Its drive nozzle fires water at a sail-like rotating blade which drives water outwards through the screen.

Using just 2.5% to 8% of the pumped water for backwashing, the blade is continuously cleaned. This keeps the system running efficiently, lowering power consumption.

The narrow 0.5mm screen slots filter incoming water, significantly reducing wear on the pump and other components.

By preventing common issues like screen blockage, loss of prime, and pump wear, the KleenScreen Revolver greatly reduces the labor needed for maintenance.

FLOW | PRESSURE | CONNECTIONS

River suction screen flow rates.jpg

DIMENSIONS

Suction Screen Dimensions.jpg
Small Suction Screens.jpg
